Technical parameters of ZF410 10L agricultural plant protection drone

Aircraft wheelbase: 1350 mm

Flight speed: 0-15/s

Frame type: X-type quadrotor

Blade size: 30 inches/78 cm

Expanded size: length 1050mm*width 1050mm*height 570mm

Folding size: length 650mm*width 650mm*height 520mm

Relative flying height: 1-3m from crops

Flight control system: Z++

Ground station: support Android Android/Windows

Wireless remote control: digital transmission integrated dustproof remote control

Lithium polymer battery: 50.4V/12S/15C/14000 mAh

Battery life: 300 charge and discharge

Single flight time: 5-8 minutes/sort, operation 10-12 acres

Maximum remote control distance: 1500m (the actual distance is subject to the magnetic field strength of the work site)

Maximum load: 10 L (kg)

Recommended operating temperature: 0°C-+30°C

Spraying method and spray width: pressure type four nozzles; 3-5 meters

Single machine operating efficiency: 400-600 acres/day

Model features:

Folding propeller, waterproof and dustproof motor;

The horizontal folding design of the machine arm is convenient for transportation;

Propeller break protection, wireless remote start and remote control;

Intelligent spraying, intelligent A, B point mode and route planning mode allow us to truly free our hands and realize fully autonomous operation;

Ground station selction, mobile phone measurement, fully autonomous flight planning;

Resume spraying at break point, resuming spraying in memory of power failure and drug interruption, and display the drug amount through the drug liquid monitoring system;

Flight supervision platform (4G cloud platform), convenient for operator statistics and third-party data transfer. Real-time view of plant protection operation progress, operation area team and equipment distribution through satellites;

The new radar imitates the ground and is also applicable at night.

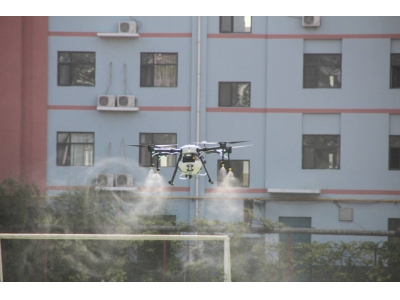

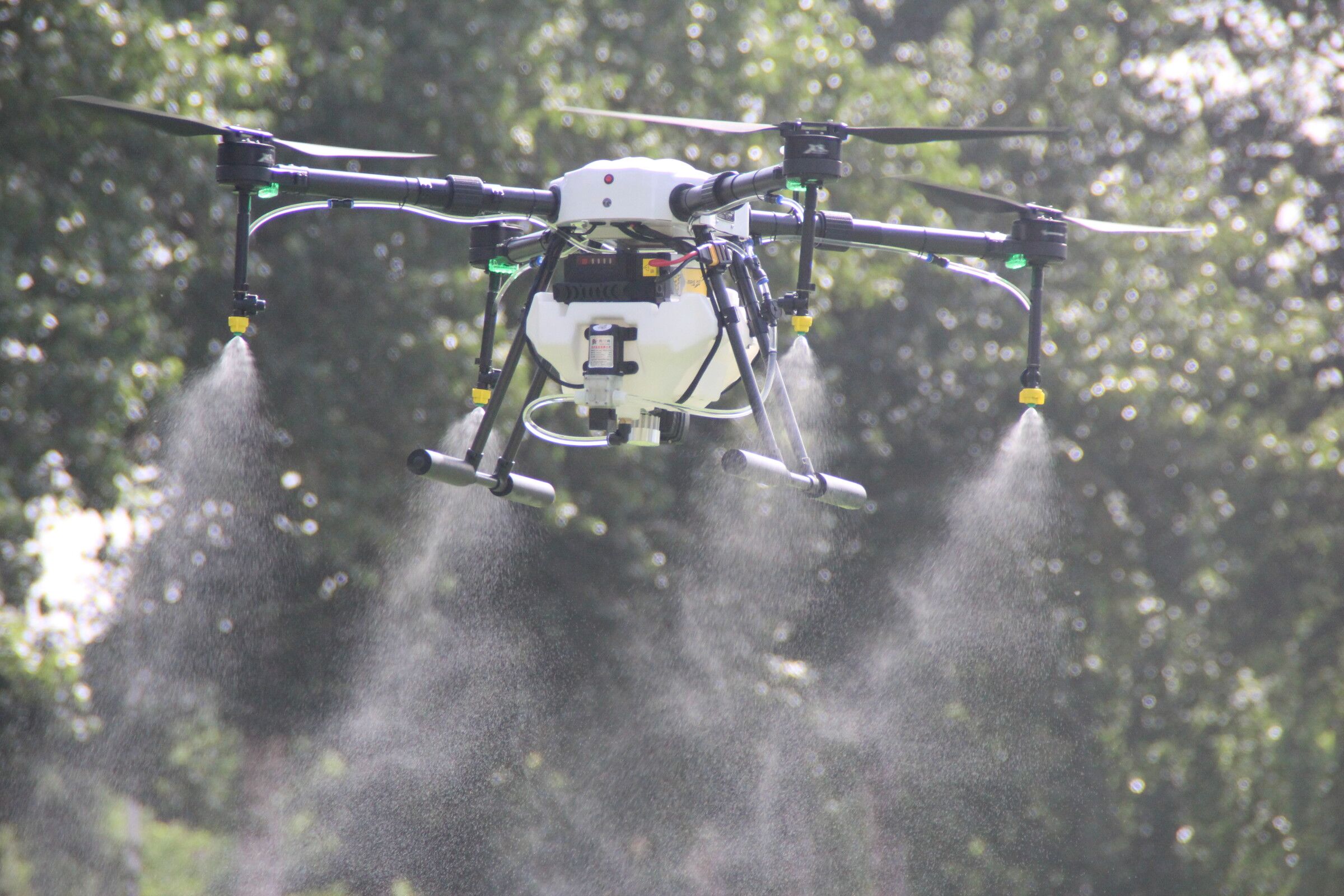

Demonstration video of plant protection drone operation
